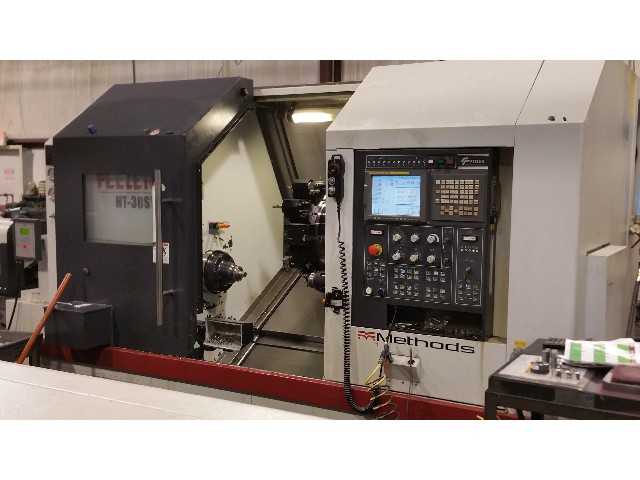

Feeler HT-30SY 7-axis CNC Turning Center

Feeler HT-30SY 7-axis CNC Turning Center

Feeler HT-30SY

Age: 2011

Condition: Very Good

Stock Number: 6509


Click to view larger photo

SpecificationDescription
Swing Over Bed36.4"
Swing over cross-slide29.7"
Turning Dia14"
Max. Turning Length27.8"
Barwork Capacity3" Main / 1.7" Sub
Number of Tooling Stations12 with 9 HP Milling Motor
Main Spindle Speed Manin / Sub3500 RPM / 6000 RPM
Horsepower Main Spindle30 HP / 15 HP
Approx. Weight14,330 lbs

Equipped With:

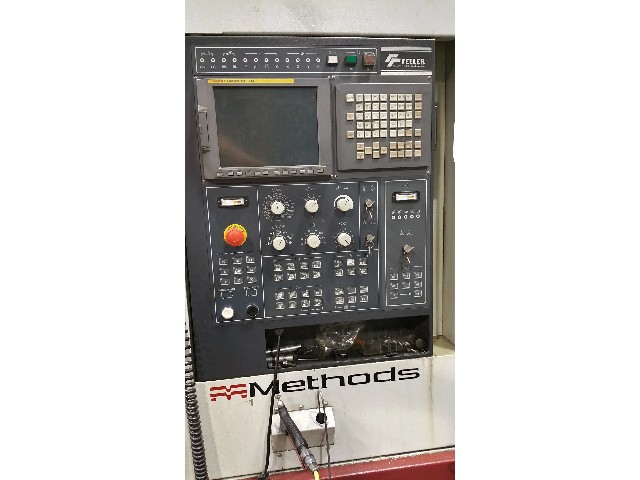

Fanuc 18i-TB CNC Control
Collet chucks (main & sub) that use 3J collets
10" 3 jaw chuck for main spindle
6" 3 jaw chuck for sub spindle
OD tool holders
ID tool holders
LNS Servo 80 S2 Barfeeder (will feed 3" diameter material)
High Pressure Coolant Pump
2 X BMT60 Live Tools (ER 32)
2 Z BMT60 Live Tools (ER 32)
Parts Catcher
Chip Conveyor
All Available Manuals
