Brother TCR2A CNC Drilling & Tapping Center

Brother TCR2A CNC Drilling & Tapping Center

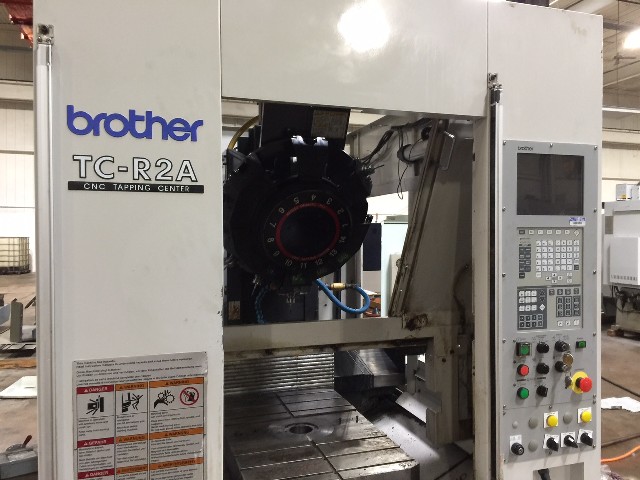

Brother TC-R2A

Age: 2008

Condition: Good

Stock Number: 6681


Click to view larger photo

SpecificationDescription
Table Size19.7" x 11.8"
X-Axis Travel16.5"
Y-Axis Travel12.6"
Z-Axis Travel10.6"
Number of Tool Stations14 Positions
Maximum Spindle Speed10 ~ 10,000 Rpm
Spindle TaperBT-30
Tool Change Time (Chip to Chip)1.8 Seconds
Rapid Traverse Rate1181/1181/1965 IPM RAPIDS
Machine Weight6393 LBS.
Table top to Spindle Nose7.1" ~ 17.1"

Equipped With:
Brother CNC-A00 Control (Conversational or G-code)

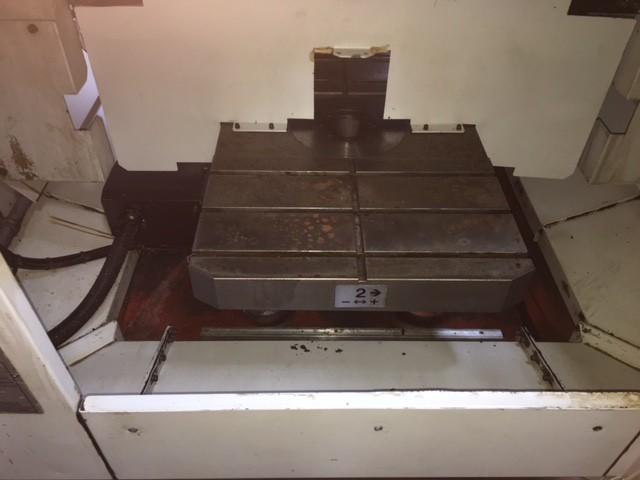

Quick Table (Two Surface Pallet Changer)
Manual Pulse Generator
All Available Manuals

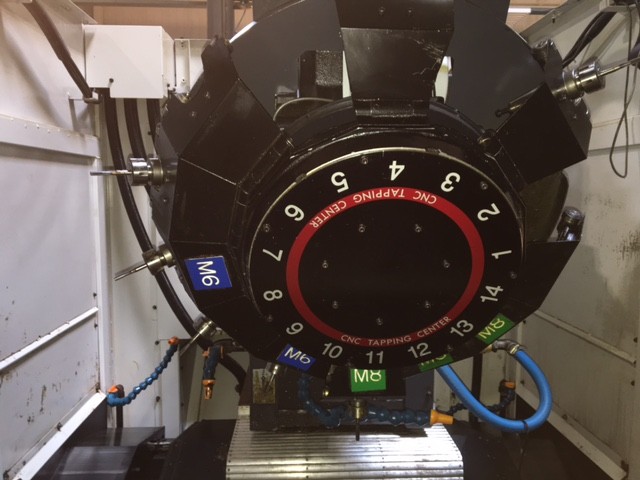

14 Position Turret Style Atc
